One Point Solution for Marine Machinery and Equipments from
ALANG Ship Breaking Yard

Maker :

Model / Type : LBD 70TB-V

Condition : Reconditioned

Product Description :

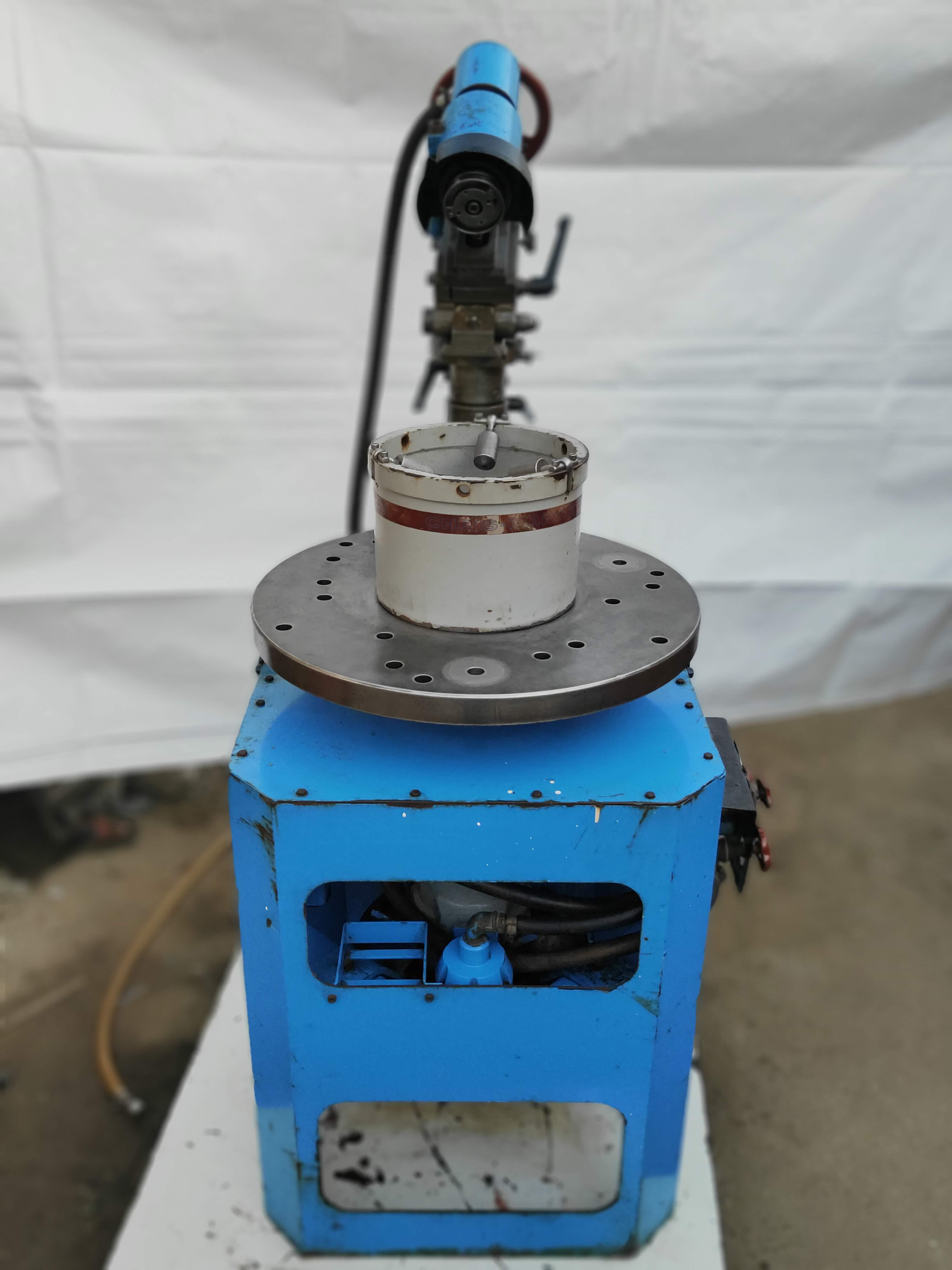

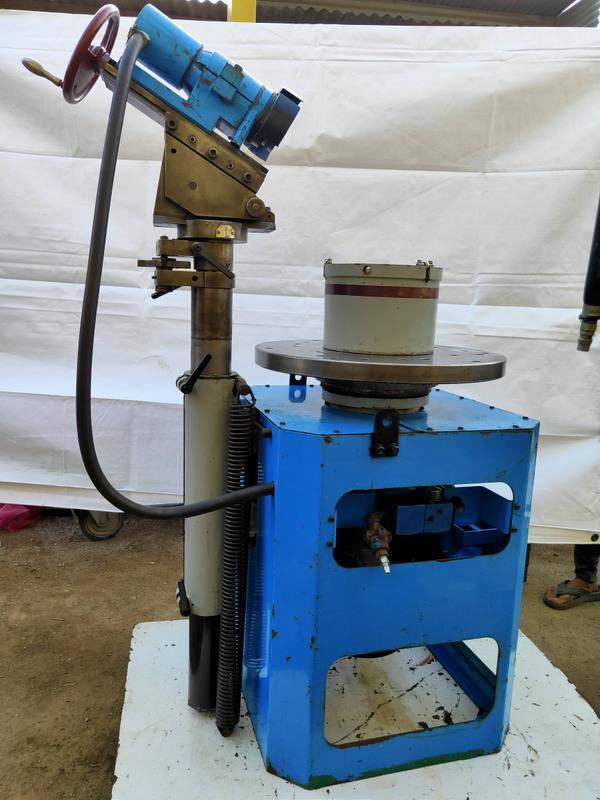

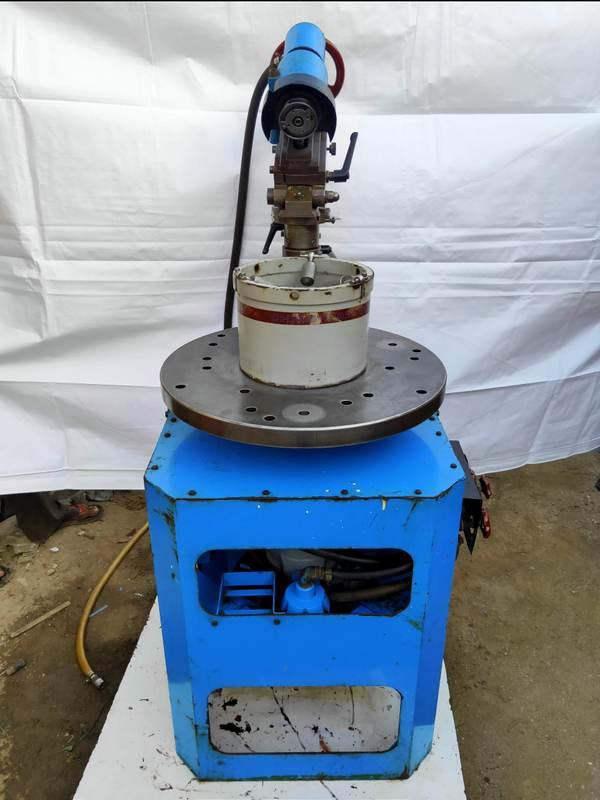

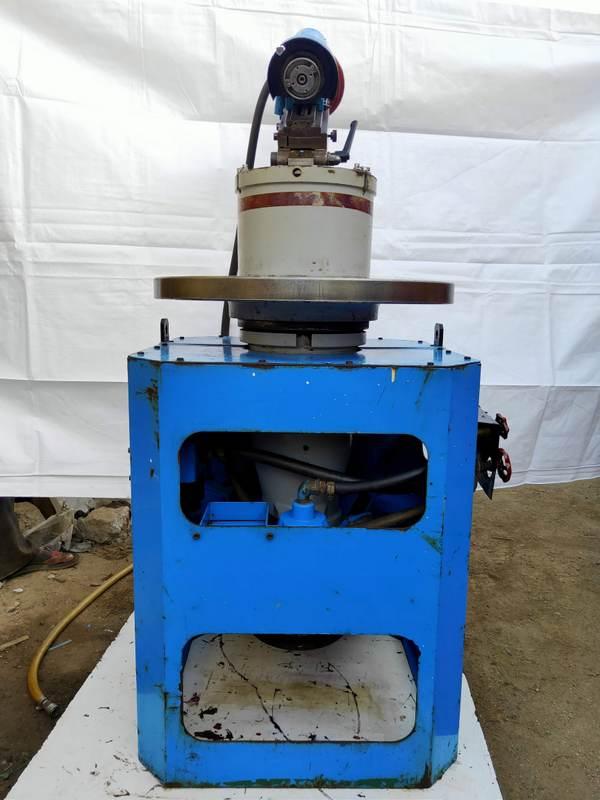

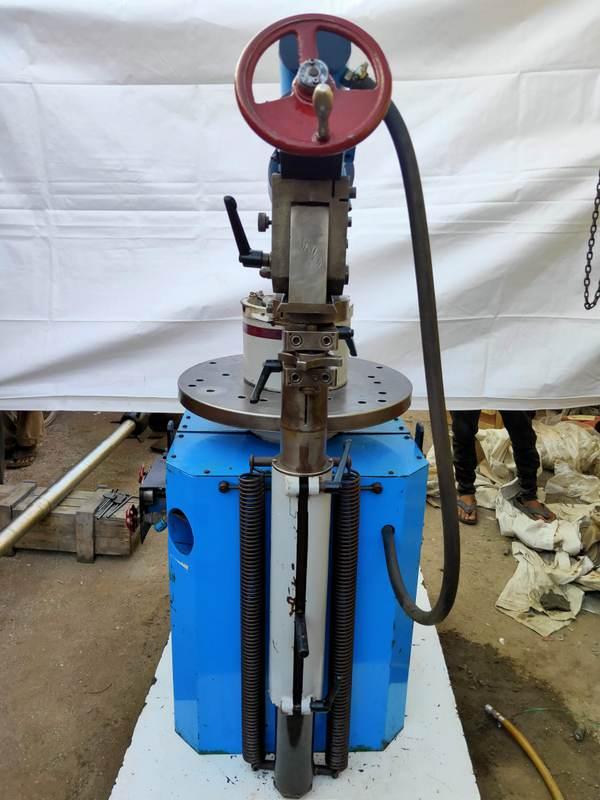

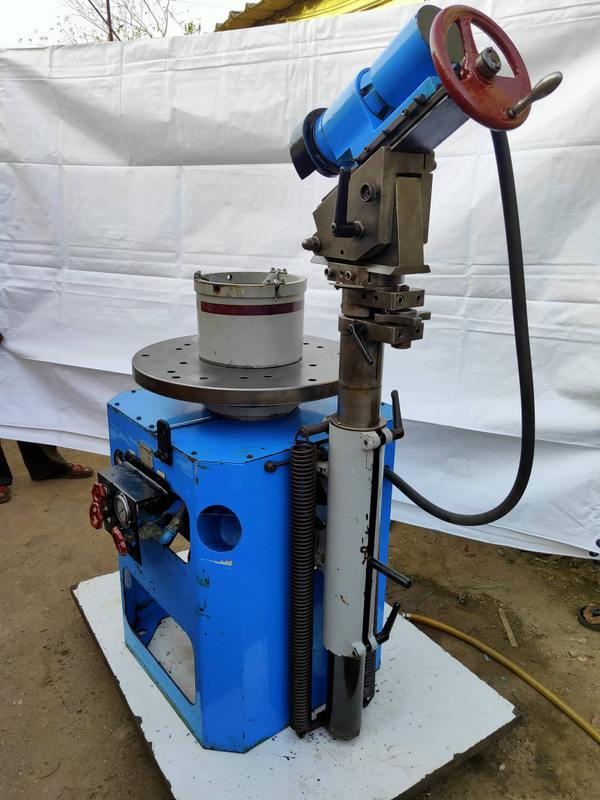

The LBD is designed and developed for grinding of valves and valve seats on 2-stroke diesel engines. The pneumatically driven LBD has a high range of operation, up to 650 mm valve and seat diameter, and features anti-vibration dampers and self-centering of valve and seat.



  •
  • Self-centering of valve and seat
  •
  • Anti-vibration dampers
  •
  • Pneumatically driven
  •
  • Grinding angles set according to customer’s requirement
  •




Technical specification



Machine capacity Up to Ø650 mm on valve disc and valve seat
Air pressure 0.6 - 0.9 MPa (6 - 9 bar or 85 - 130 psi)
Air consumption 1700 l/min
Weight 440 - 460 kg
Max dimensions H: 1300 - 1700 mm, W: 960 × 700 mm
Air hose connection 16 mm (5/8")
Noise level 91.6/81 dB(A) fro pneumatic and electric versions respectively
Normal grinding time 10 - 20 min per seat
