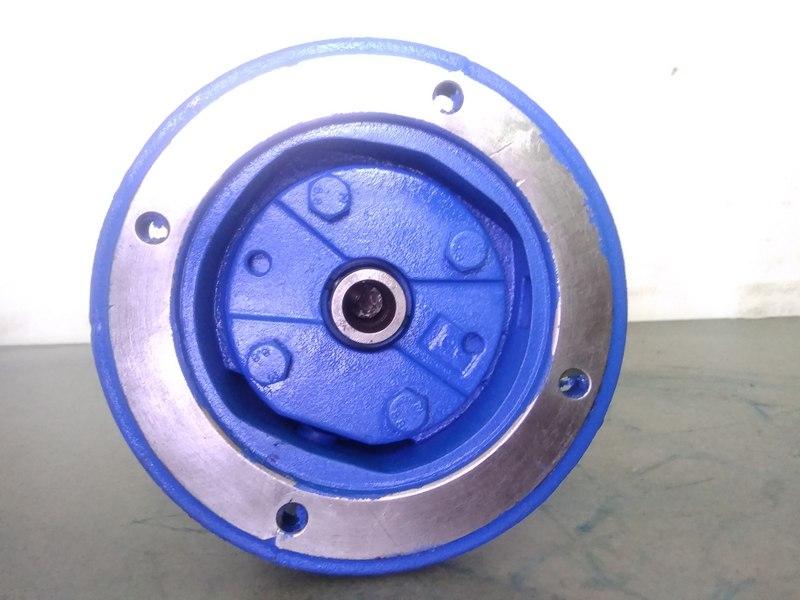

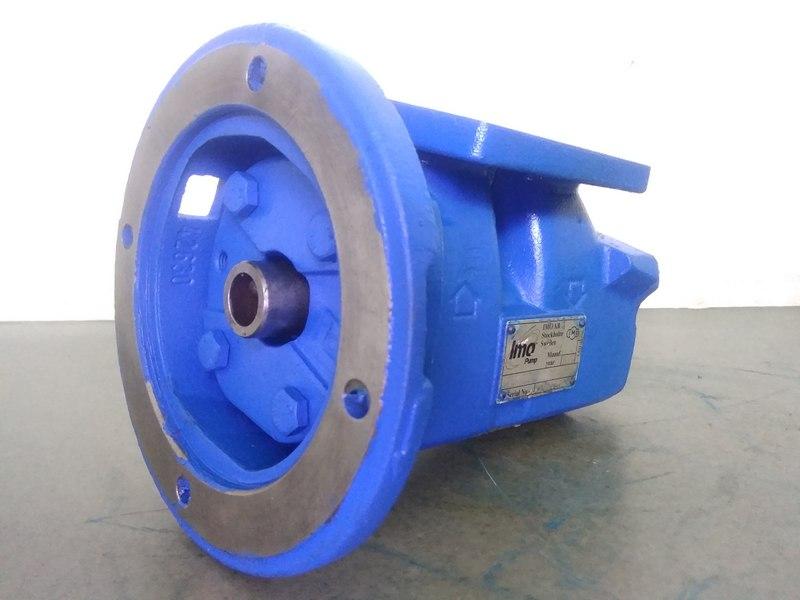

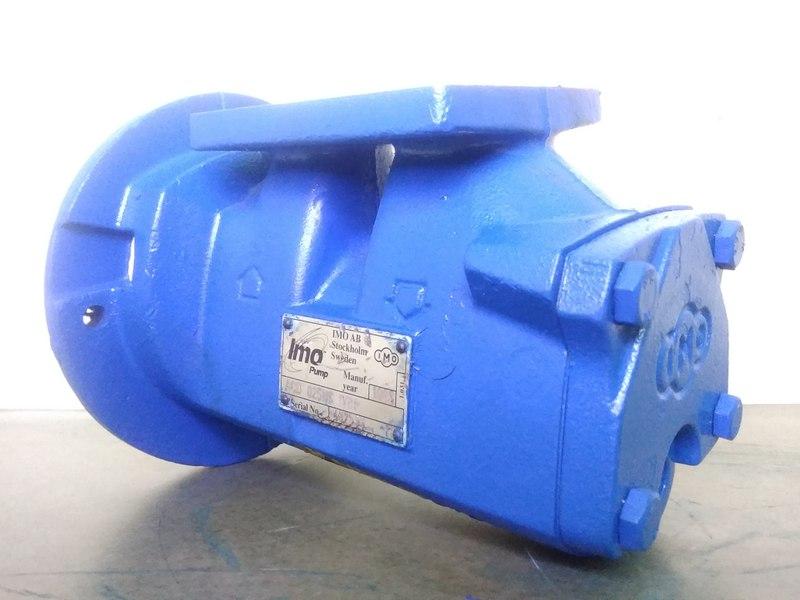

IMO Tripple Screw Oil and fuel transfer pump.
Maker: IMO AB
Type: ACD 025N6 IVBP
pump procured from ship recycling yard.
Flow volume: 11-45 l/min
Max differential pressure: 7 bar
Applications: Lubrication, circulation and transfer
The ACD pumps are used for a number of different fluids:
Lubrication oil, fuel oil, vegetable oil, hydraulic oil and other hydraulic fluids, glycols, polymers, emulsions, and any nonaggressive fluid with some lubricating properties.
Typical application are:
• Lubrication of diesel engines, gears, gas and steam turbines, hydro turbines, paper machines.
• Circulation for cooling and filtration in large machineries and hydraulic systems, pumping transformer oil for insulation in transformers.
• Transfer onboard ships, in oil factories, refineries, tank farms etc.
Maximum discharge pressure is 12 bar
Maximum differential pressure is 7 bar
Max speed limit
The maximum speed is 3600 rpm. For higher speeds contact IMO AB.
The ACD pump is designed to operate in one rotational direction only, as standard clockwise when facing the shaft end.
Fluid viscosity: 2-1500 mm2/s
-20°C to 90°C for all types of ACD.
