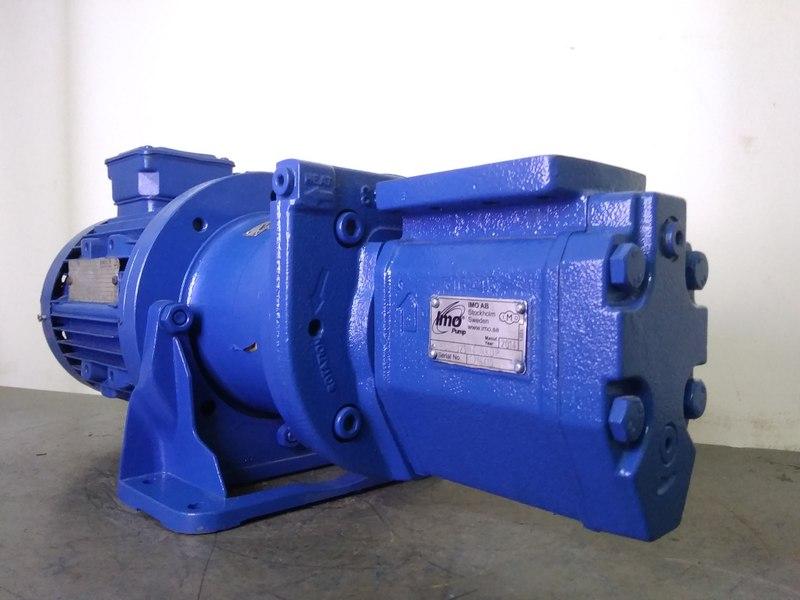

Imo Tripple Screw Oil and fuel transfer pump
Maker: IMO AB
Model : ACE 025N4 NKBP
Procured from ship store
Flow volume: 10-180 L/min.
Max differential pressure: 16 bar
Applications: Lubrication, circulation and transfer
The ACE pumps are used for a number of different fluids:
Lubrication oil, fuel oil, vegetable oil, hydraulic oil and other hydraulic fluids, glycols, polymers, emulsions, and any nonaggressive fluid with some lubricating properties.
Typical application are:
• Lubrication of diesel engines, gears, gas and steam turbines, hydro turbines, paper machines.
• Circulation for cooling and filtration in large machineries and hydraulic systems, pumping transformer oil for insulation in transformers.
• Transfer onboard ships, in oil factories, refineries, tank farms etc.
Maximum discharge pressure is 16 bar
Maximum differential pressure is 16 bar
Max speed limit
The maximum speed is 3600 rpm. For higher speeds contact IMO AB.
