One Point Solution for Marine Machinery and Equipments from
ALANG Ship Breaking Yard
Maker : Ingersoll Rand
Model / Type : 77H120H84-EU
Condition : Used
Product Description :

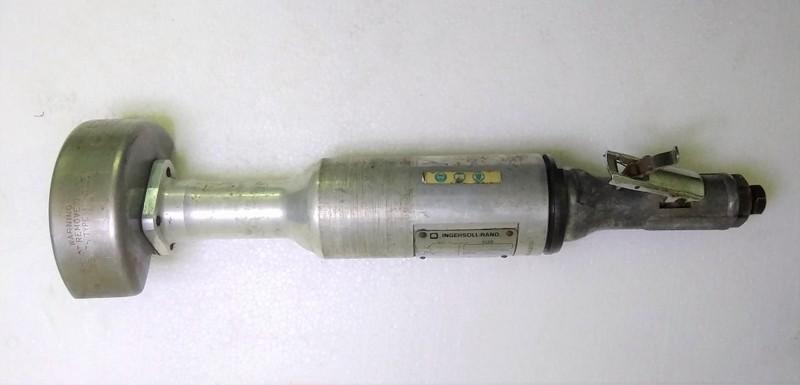

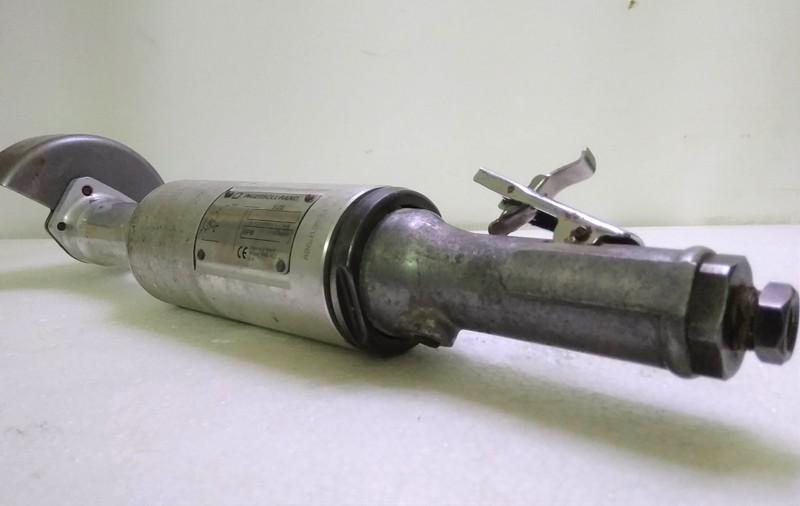

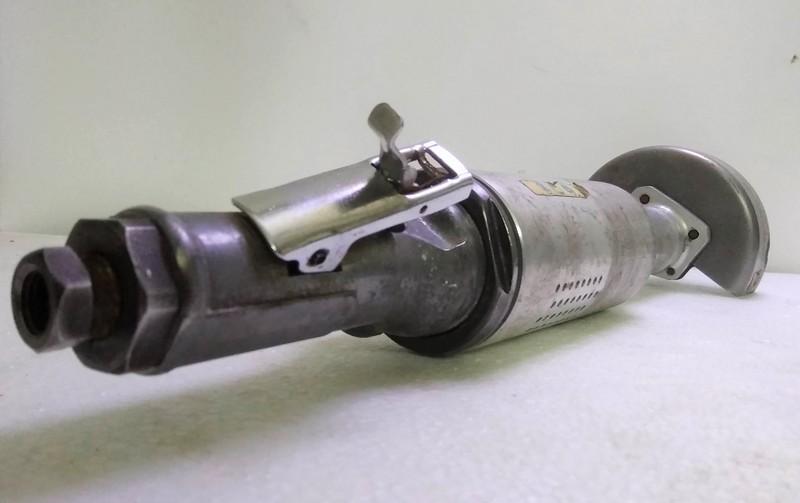

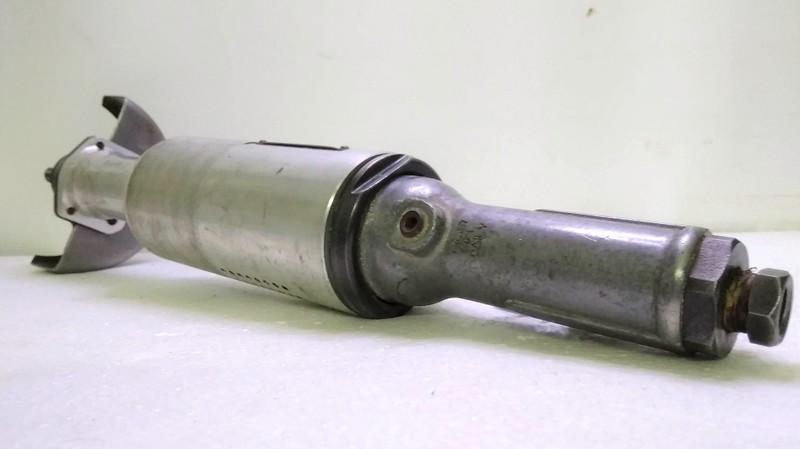

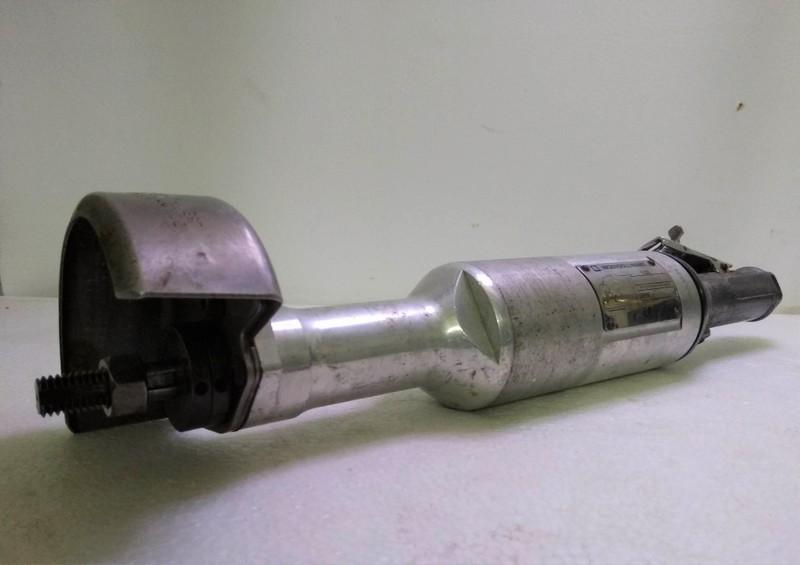

Ingersoll Rand 77H120H84-EU Pro Series 77H Extended Straight Pneumatic grinder
Description:
| Model | 77H120H84-EU |
| Rated Power hp (kW) | 1.5 (1.12) |
| Max Free Speed (rpm) | 12,000 |
| Exhaust | Side |
| Output | 1/2" - 13 Thread, 4" Guard |
| Wheel Size in. (mm) | 4" x 1" (100 x 25) |
| Weight lbs. (kg) | 6.5 (3.0) |
| Length in. (mm) | 17.25" (438) |
| Vibration m/s2 | 2.8, uncertainty: 1.2 |
| Sound Pressure/Power dBA | 85.4 / 98.4 |
| Average Air Consumption cfm (L/min) | |
| Air Consumption @ Load cfm (L/min) | 39 (1105) |
| Air Inlet Size NPT in. | 3/8" |
| Min Hose Size in. (mm) | 1/2" (13) |
